NCM VS LFP Dec 17

Advantages and Disadvantages

Lithium battery NCM LFP
Energy density High, 240WH/kg Low, 140WH/kg
Low temperature resistance The lower limit is - 30 ℃ The lower limit is - 20 ℃
High temperature resistance Thermal runaway temperature is lower than 300 ℃ Be safer and thermal runaway temperature is more than 500 ℃
Cycle life(High end quality in the market) 2000 cycles and the service life is only 6 years 3500 cycles and the service life can reach to 10 years
Charging efficiency High Low
Manufacturing cost High Low
Environmental protection Poisonous No pollution, in line with European RoHS
Processability Good consistency and easy to assemble into pack Poor consistency and the cell balance performance is poor after the pack is assembled
The reason for the coexistence of the two in the market lies in the respective adaptability of the two due to the above differences.

 Table of Physical Performance Parameters of LFP(The following information is reproduced from Baidu Library.)

Apparent density 0.7g/cm
Tap density 1.2g/cm
Median diameter 2-6um
Specific surface area <30m/g
Coating parameters LiFePo4:C:PVDF=90:3:7
Compact density of electrode 2.1-2.4g/cm

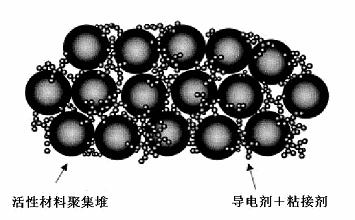

 Schematic diagram of LFP battery



 Comparison of Applications

Lithium battery Main applications
Same fields Different fields
NCM

New energy vehicle - car (passenger car)

Medical equipment - small and medium size

Two-wheeler, tricycle, high-end consumer digital electronic products, intelligent robot, UAV, power tools, etc.
LFP

New energy vehicle - car (bus)

Medical equipment - big size

Data center, computer room system, communication base station, large emergency power supply / industrial equipment, energy storage field, etc.
